Standard W Pale

Standard W Pale

Standard 'W' Section, Loose Pale

Buy UK manufactured steel palisade systems direct from the manufacturer.

SECURITY LEVEL: Med to High

Fastline® are one of the few UK manufacturers of steel palisade fencing systems.  This allows us to provide standard, BS compliant systems as well as enabling us to adapt bespoke systems to suit all requirements.

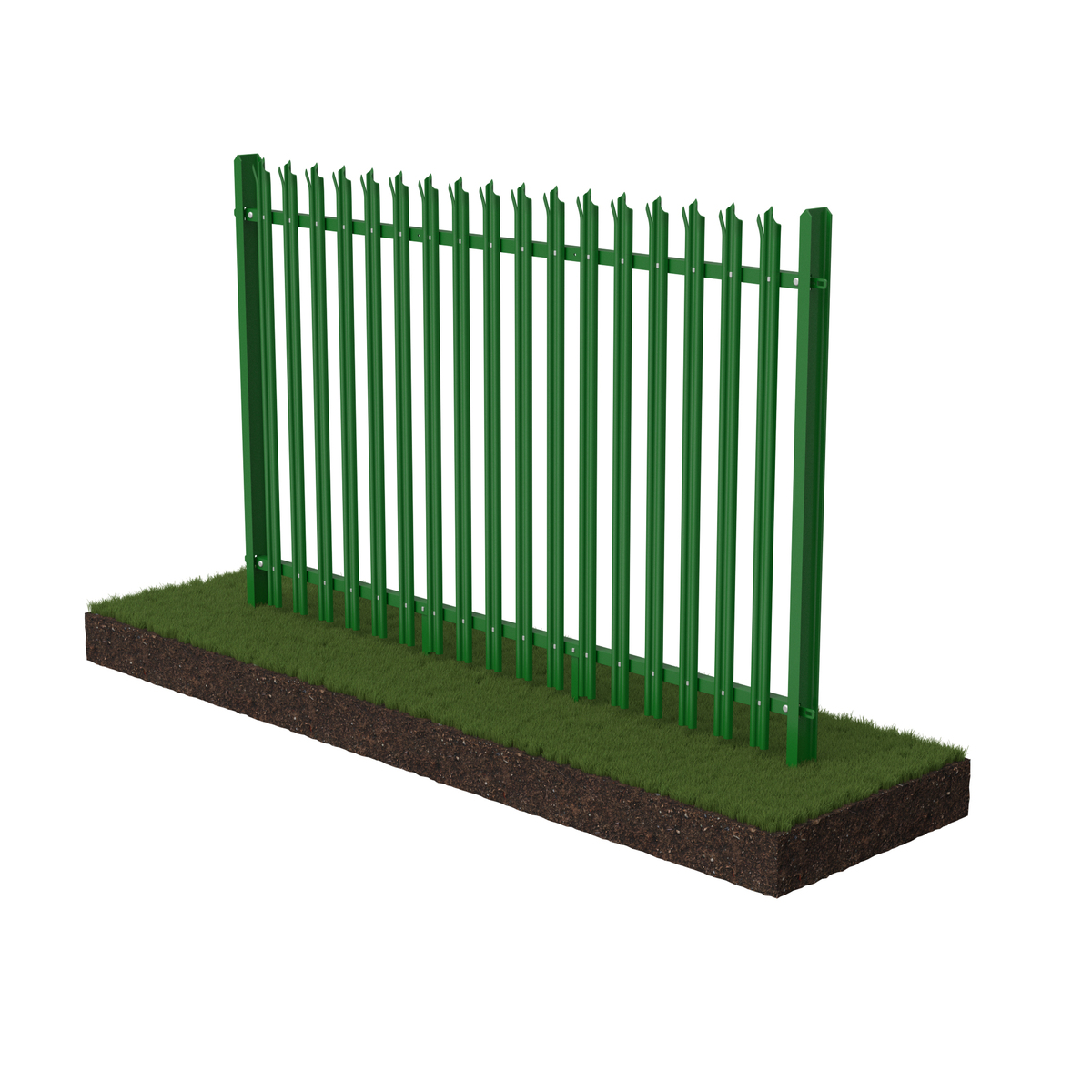

Steel Palisade (available heights in single lift - 1.5, 1.8, 2.1, 2.4, 3, 3.6mH - system heights in double lift configuration available up to 5mH).

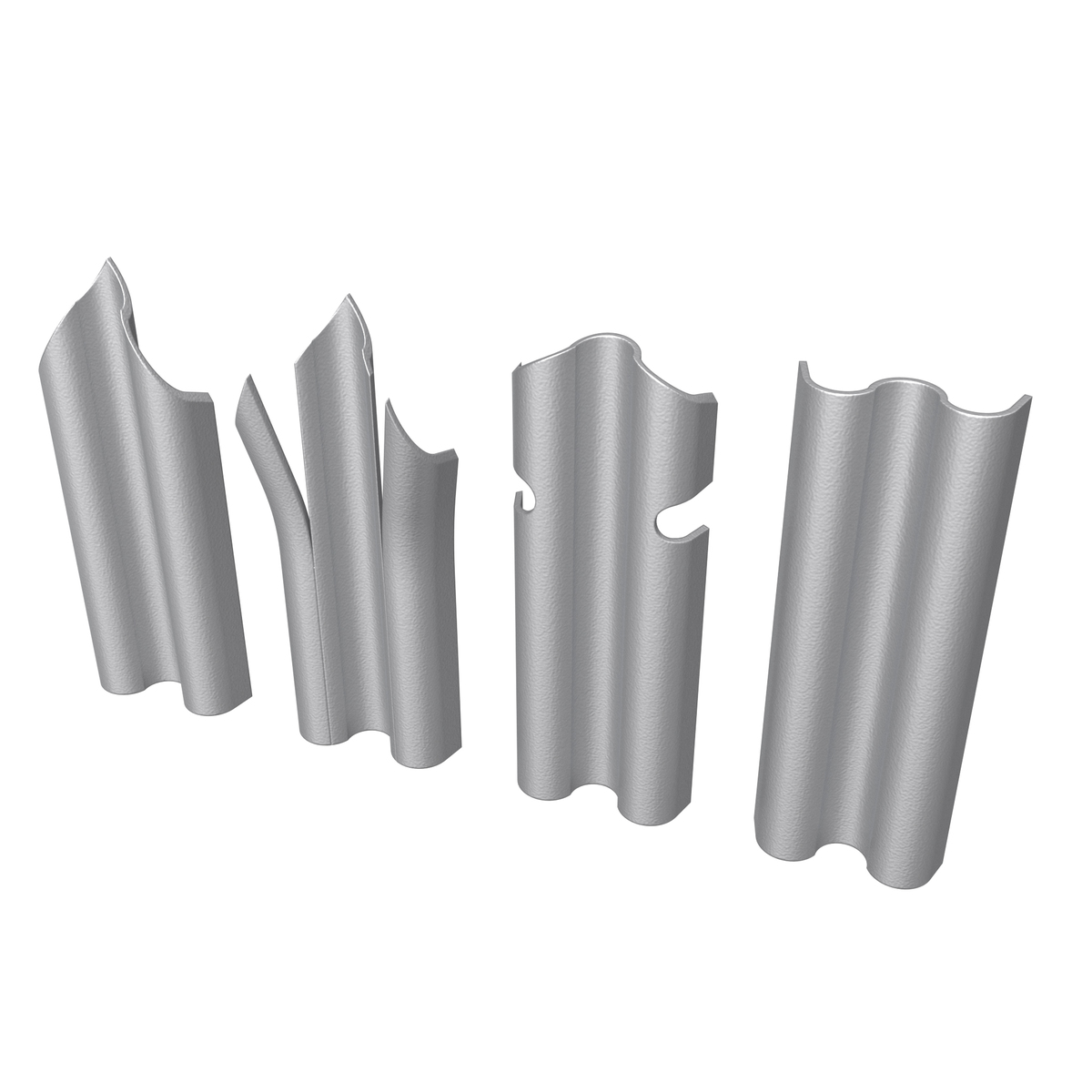

a) pales
Corrugated ‘W’ or 'D' section; 17 pales, 2.5 to 4mm. Tops of pales; round and notched, round, plain, single pointed, triple point and splayed.
b) rails
Horizontal support rails 40x40x6 to 75x50x6 RSA (dependant upon system height) with 10mm holes on front face.
c) posts (steel)
100x50 IPE, 102×44 or 127x76 RSJ pointed at top. 2.75m post centres.
d) fixings
M8×25mm mild steel bolts (with malleable head) and shear nuts.
M12×30mm cup square bolts & M12 shear nuts.

Various conforming specifications are available; for guidance, please speak to our Estimators who will be happy to advise.

The system allows for “raking” to follow the topography of the site without any compromise in security or system rigidity and with no time consuming/ costly modification requirements on site.  Rails are quickly and easily fixed to posts and can follow most demanding site gradients.

Aesthetically pleasing, easy to install, robust and at a price to suit almost any budget.

Data sheet available for download below (Additional Information section).

our Standard W Pale comes with a F10 Fastline 10 Year Guarantee

F10 Fastline 10 Year Guarantee
Benefits of using Fastline for Standard W Pale
  • UK manufactured to exceptionally high standard.
  • Can be provided to comply to BS 1722-12:2006.
  • Full range of assosciated gate sets available.
  • Available to suit all required heights.
  • Full range of security topping options.
  • Available with dig in or base plated posts.
  • Robust system.
  • Good through visibility.
  • Full drawings provided upon approval.
  • Data centres.
  • High risk areas.
  • Railways.
  • Commercial/ industrial sites.
  • Government installations.
Galvanising and Power Coating

Our steel palisade systems are hot dip galvanised to BS EN ISO 1461 or BS EN 10240 and additionally, if required, powder coated green (RAL6005) or black (RAL9005) in accordance with BS1722-16: 2009.

We can PPC to the colour of your choice.



Quality Control

All Fastline® products undergo rigorous multi-stage inspections to ensure conformity to the above
standards and contribute to our product guarantee. Manufactured in house to exceed all current legislative requirements.

We have multiple quality control check stages to ensure that our products and our service are of the highest standard without exception.

We are ISO 9001 certified and are subject to regular audits (BSI, BSE/CE, BRE) to ensure continual compliance.

Tracked Delivery

We use our own in-house transport and are proud carriers of DVSA Earned Recognition status which sets us apart in our industry.

Our vehicles are tracked to ensure regular delivery updates can be offered.  We are completely in control of our fleet and are able to schedule/ re-schedule deliveries to suit the urgency of your requirement.

CAD Design

We have a skilled team of design engineers who ensure that all details offered are suitable for your requirements.  In conjunction with our uniquely talented fabricators, any requirement can be accomodated

Drawings are issued and approved prior to fabrication to ensure the materials are as expected.  Setting out can commence prior to receipt of materials and drawing files are avaiable in the format of your choosing (.dwg, .pdf, .stp) to enable ease of integration with your/ your Client's drawings package.

Manufacturing

Operating from numerous national factories (our main production facility being in the West Midlands), we fabricate all of our products in house to ensure full control over the manufacturing process.

We continually invest in state of the art equipment to ensure we remain at the very pinacle of our industry.

The result is unrivalled lead times, quality, service and price.

  • CAD Design
    CAD Design

    We have a skilled team of design engineers who ensure that all details offered are suitable for your requirements.  In conjunction with our uniquely talented fabricators, any requirement can be accomodated

    Drawings are issued and approved prior to fabrication to ensure the materials are as expected.  Setting out can commence prior to receipt of materials and drawing files are avaiable in the format of your choosing (.dwg, .pdf, .stp) to enable ease of integration with your/ your Client's drawings package.

  • Manufacturing
    Manufacturing

    Operating from numerous national factories (our main production facility being in the West Midlands), we fabricate all of our products in house to ensure full control over the manufacturing process.

    We continually invest in state of the art equipment to ensure we remain at the very pinacle of our industry.

    The result is unrivalled lead times, quality, service and price.

  • Galvanising and Powder Coating
    Galvanising and Powder Coating

    Our steel palisade systems are hot dip galvanised to BS EN ISO 1461 or BS EN 10240 and additionally, if required, powder coated green (RAL6005) or black (RAL9005) in accordance with BS1722-16: 2009.

    We can PPC to the colour of your choice.



  • Quality Control
    Quality Control

    All Fastline® products undergo rigorous multi-stage inspections to ensure conformity to the above
    standards and contribute to our product guarantee. Manufactured in house to exceed all current legislative requirements.

    We have multiple quality control check stages to ensure that our products and our service are of the highest standard without exception.

    We are ISO 9001 certified and are subject to regular audits (BSI, BSE/CE, BRE) to ensure continual compliance.

  • Tracked Delivery
    Tracked Delivery

    We use our own in-house transport and are proud carriers of DVSA Earned Recognition status which sets us apart in our industry.

    Our vehicles are tracked to ensure regular delivery updates can be offered.  We are completely in control of our fleet and are able to schedule/ re-schedule deliveries to suit the urgency of your requirement.

F10 Fastline 10 Year Guarantee
F10 Fastline 10 Year Guarantee

This product can be provided to conform to the stated standard; please state this at the point of enquiry and our team will be more than happy to advise to ensure full compliance to any specification.

See separate Terms & Conditions for guarantee compliance.
